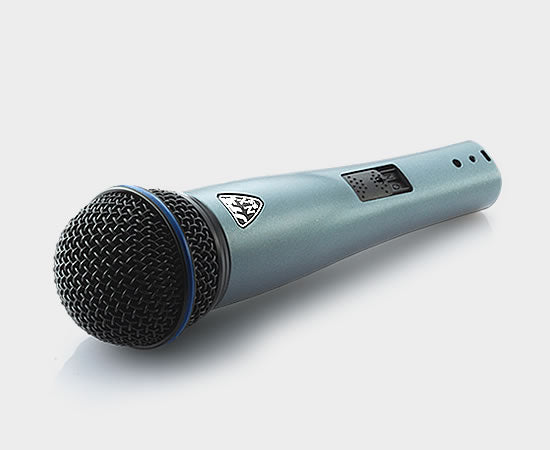

NX-8 WITH SWITCH FOR VOCALS

NX-8S Based on the success of X-series performance microphones NX-8/NX-8S reenhance overall performance. NX-8/NX-8S provide extended frequency response and dynamic range for cleaner and smoother sound. The shock mount keeps handling noise to extremely low level. Reinforced cartridge and hardened grille make NX-8/NX-8S one of the most rugged mics in the professional microphone industry. SPECIFICATIONS NX-8S Type Moving Coil Dynamic Frequency Response 50~16,500 Hz Polar Pattern Cardioid,rotationally symmetrical about microphone axis, uniform with frequency Sensitivity(at 1,000Hz) -72dB*(0.25mV)*0dB=1V/µbar Impedance 600O Phasing Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Connector Three-pin professional audio connector (male XLR type) Case Metallic enamel-painted die cast metal body with hardened, matte-finished steel grille Net Weight 245 grams (8.6 oz) NX-8S Equipped with Magnetic Reed Switch
