NEUTRIK

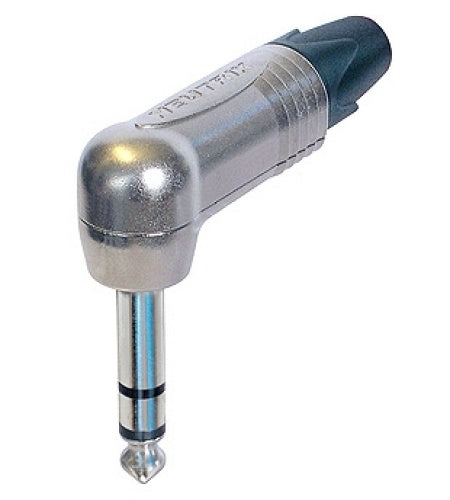

RIGHT ANGLE JACK PLUG STEREO
RIGHT ANGLE JACK PLUG STEREO
SKU:NU-NP3RX
Out of stock
Regular price
$21.00 AUD
Regular price
Sale price
$21.00 AUD
Unit price
/
per
Couldn't load pickup availability
3 pole right-angle 1/4" professional phone plug, nickel contacts, nickel shell
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
Extra slim 1/4" plug for highest packing density
Robust diecast shell in stylish design
Proven chuck type strain relief for reliable cable retention
Sleek design for best handling convenience
Precision machined one-piece contacts - avoid hook up of tip contact
Electrical
Contact resistance depends on mating connector mO (inner)
Dielectric strength1 kVdc
Insulation resistance > 2 GOhm (initial)
Rated current per contactdepends on mating connector A
Rated voltage < 50 V
Mechanical
Cable O.D. 4 - 7 mm
Lifetime > 1000 mating cycles
Wiresize 1 mm²
Wiresize 18 AWG
Wiring Solder contacts
Material
Bushing Polyacetal (POM) + PU
Contact plating 2 µm Ni (Su)
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
ShellZinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
