THREE ZONE MIXER 6 STEREO LINE INPUTS 2 MIC IN

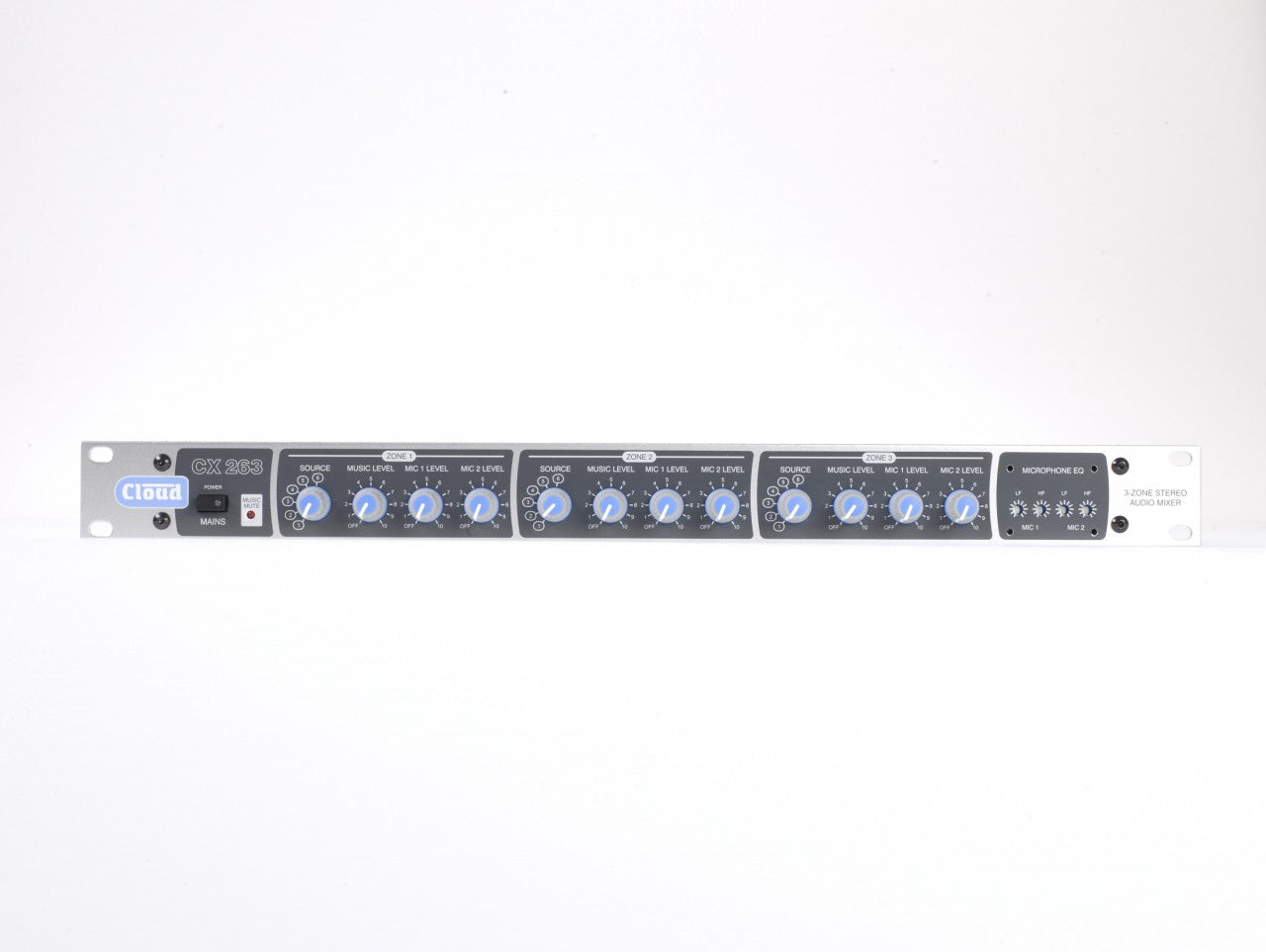

The CX263 is the ideal solution for leisure, licensed and retail venues. This compact unit has 6 line level inputs and 2 mic inputs with paging microphone access on Mic 1. The CX263 has one stereo and two mono zones. The line inputs and mics can be independently routed to any output zone via the front panel controls, alternatively the music signals on each zone can be controlled remotely by the RL-1 (level only) or RSL-6 (source and level). Additional remote control functions can be provided by the optional serial interface card (RS232) CDI-S200 shown fitted on the rear panel which can control the music level and source on each zone, access for Mic 1 on each zone, and access for Mic 2 on each zone. This compact unit is easy to install and operate but has the flexibility to provide a solution for many differing environments. Features 1 stereo zone and 2 mono zones Easy to use Easy to install and configure 6 stereo line inputs Line 6 priority over other input sources in all zones Remote music mute Paging microphone access for Mic 1 only Microphone over music priority Two band microphone EQ behind front panel facia 100Hz high pass filter on all microphone inputs Two band music EQ per zone on the rear panel Front panel gives Mic 1 level, Mic 2 level, music level and music source selection controls Optional equaliser modules for Bose loudspeakers can be fitted to any output Optional CDI-S200 Serial Interface Card (RS232) Accessories RL-1 & RL-1A Remote Music Level Control RSL-6 Remote Music Source Select XLRF1 Female XLR Input Module XLRM1 Male XLR Input Module BOSE Loudspeaker EQ Card CDI-S200 Optional RS232 Module Card for CX263 Zone Mixer EQ Cards for Amina AIWX & LFiT Loudspeakers RSL-6B Remote Source / Volume Level Select Plate in Black RSL-6W Remote Source / Volume Level Select Plate in White RL-1B Remote Volume Level Control Plate in Black RL-1W Remote Volume Level Control Plate in White RL-1MW Remote Volume Level Media Control Plate in White PM1 Paging Microphones PM4 Paging Microphone Specifications Line Inputs: Frequency Response: 20Hz-22kHz, +0, -0.5dB Distortion: 20Hz-22kHz, <0.05% Typical Sensitivity: 100mV (-17.8dBu) to 1.5V (+6dBu) Input Gain Control: 24dB range Input Impedance: 48kW Headroom: >20dB Noise: 20Hz-22kHz (0dB gain), -88dB rms typical Equalisation: LF: ±10dB 50Hz, HF: ±10dB 10kHz Microphone Inputs: Frequency Response: 100Hz -3dB (filter), 20kHz ±0.5dB Distortion: 20Hz-22kHz, <0.05% Gain Range: 10dB to 50dB Input Impedance: >2kW (balanced) Common Mode Rejection: 1kHz, >70dB Headroom: >20dB Noise: 20Hz-22kHz (0dB gain), -128dB EIN Equalisation: LF: ±10dB 150Hz, HF: ±10dB 5kHz Outputs: Nominal Output Level: 0dBu Minimum load impedance: 1k2W Maximum Output Level: +20dBu General: Power Input: 230V/115V ±10% Fuse Rating: T100mA 230V T200mA 115V Fuse Type: 20mm x 5mm 250V Dimensions: 482.60mm x 44.00mm(1U) x 152.5mm Weight (kg): 2.15
