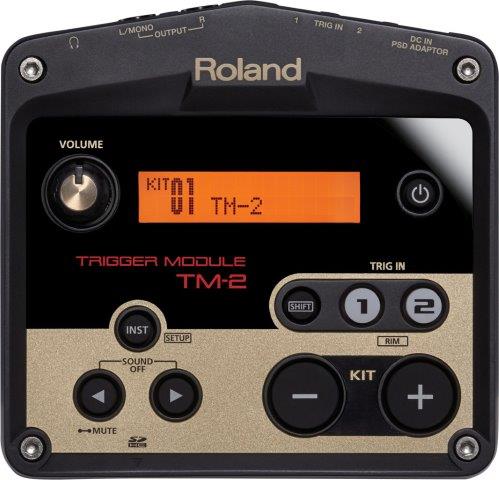

TRIGGER MODULE FOR ACOUSTIC DRUMS KITS TM-2

TM-2: Trigger Module The Easy Way to Bring Hybrid Versatility to Your Acoustic Drum Set Kits 99 Internal Instruments Over 100 User Instrument Number of User Instruments: Maximum 90,300 File Format: WAV (44.1 kHz, 16 bits, Stereo/Mono) Storage Media: SD/SDHC Memory Card (Max. 32 GB) Effects Multi-Effects: 1 system, 11 types Display 16 characters, 2 lines (backlit LCD) Connectors OUTPUT (L/MONO, R) jacks: 1/4-inch phone type PHONES jack: Stereo miniature phone type TRIG IN jack x 2: 1/4-inch TRS phone type MIDI (IN, OUT) connectors DC IN jack Power Supply AC adaptor Alkaline battery (AA, LR6) x 4 Rechargeable Ni-MH battery (AA, HR6) x 4 Current Draw 400 mA Expected battery life under continuous use Alkaline battery (AA, LR6): Approx. 4.5 hours Rechargeable Ni-MH battery (AA, HR6): Approx. 6 hours (When using batteries having a capacity of 2,000 mAh.) * The time may vary according to usage conditions, batteries used, and type of SD memory card used. Accessories Owner's manual Leaflet "USING THE UNIT SAFELY" AC adaptor Mounting plate Wing bolt (M5 x 10) x 2 Options (sold separately) Acoustic Drum Trigger: RT series Pads: PD series, PDX series, BT-1 Kicks: KD series, KT-10 Cymbals: CY series All Purpose Clump: APC-33 Pad Stand: PDS-10 Personal Drum Monitor: PM-10 Size and Weight Width 135 mm 5-6/16 inches Depth 130 mm 5-1/8 inches Height 59 mm 2-6/16 inches Weight 360 g 0 lbs. 13 oz.
