KNA VC-1 Cello Pickup – Portable Bridge-Mounted Piezo with Tailpiece Jack
KNA VC-1 Cello Pickup – Portable Bridge-Mounted Piezo with Tailpiece Jack
SKU:KNAVC1
17 in stock
Couldn't load pickup availability

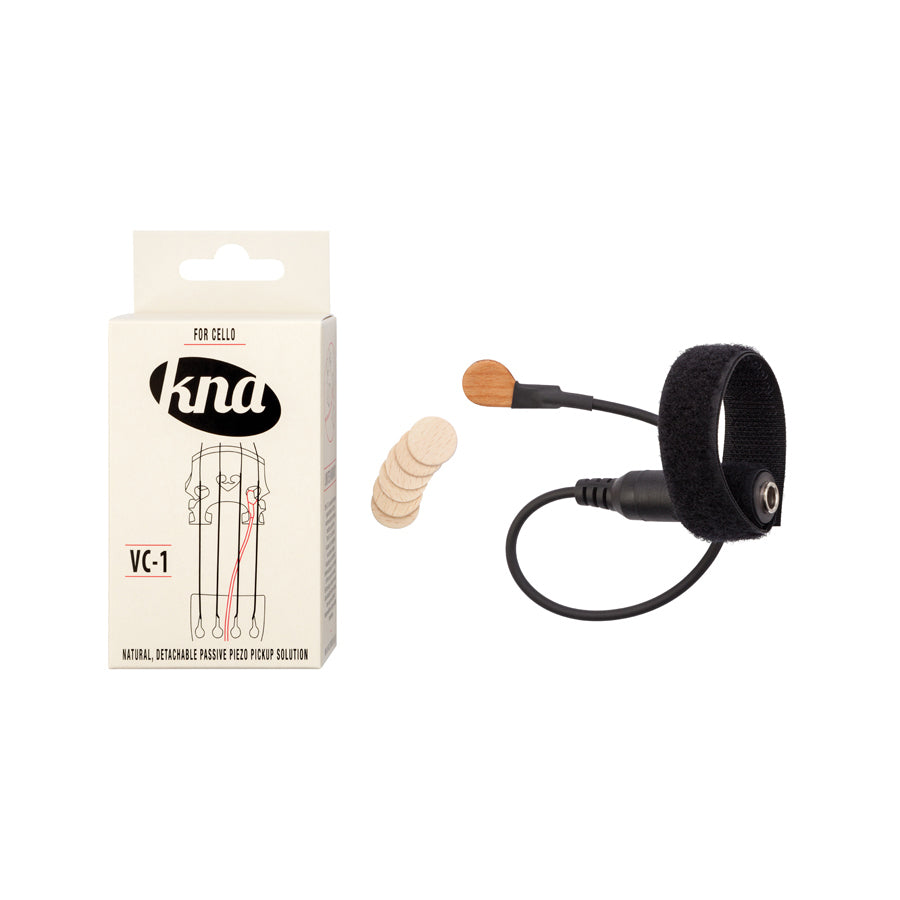

Portable bridge-mounted piezo, tailpiece-mounted output jack for cello
The easy-to-use VC-1 reproduces accurate cello tone while requiring zero modification to your instrument.

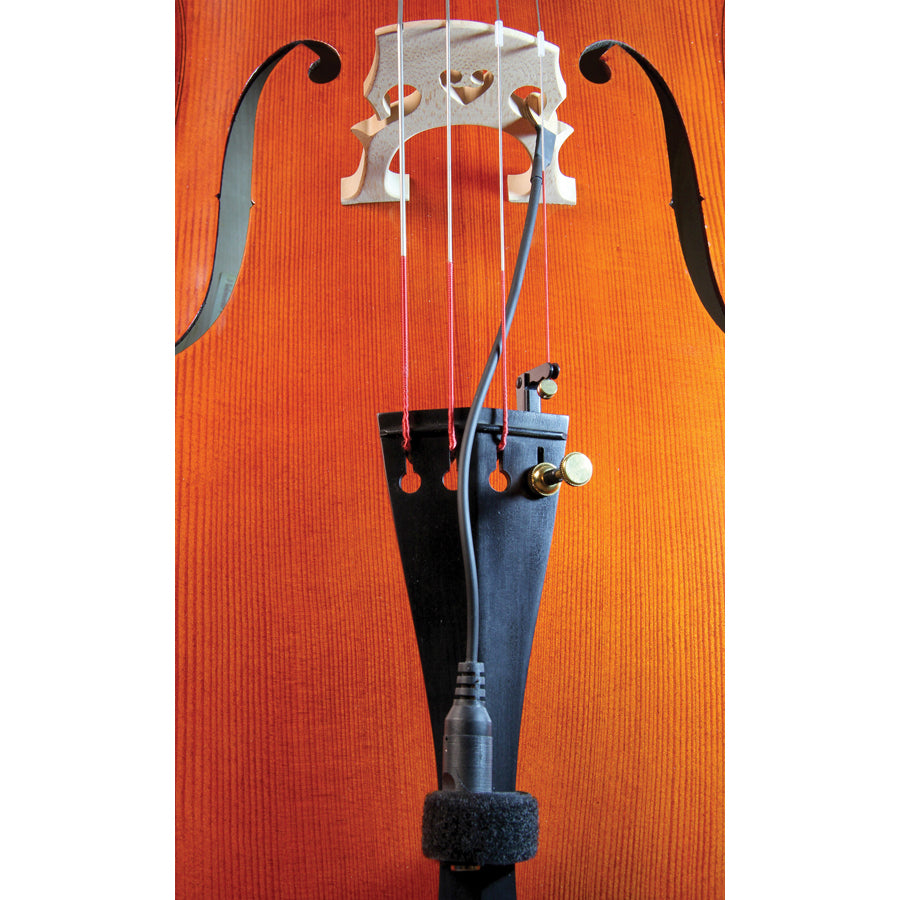

A wood-encased piezo sensor installs in the eye slot of the bridge, held in place via friction and the 1/4" socket jack attaches securely to the tailpiece.
Features:
Safe install

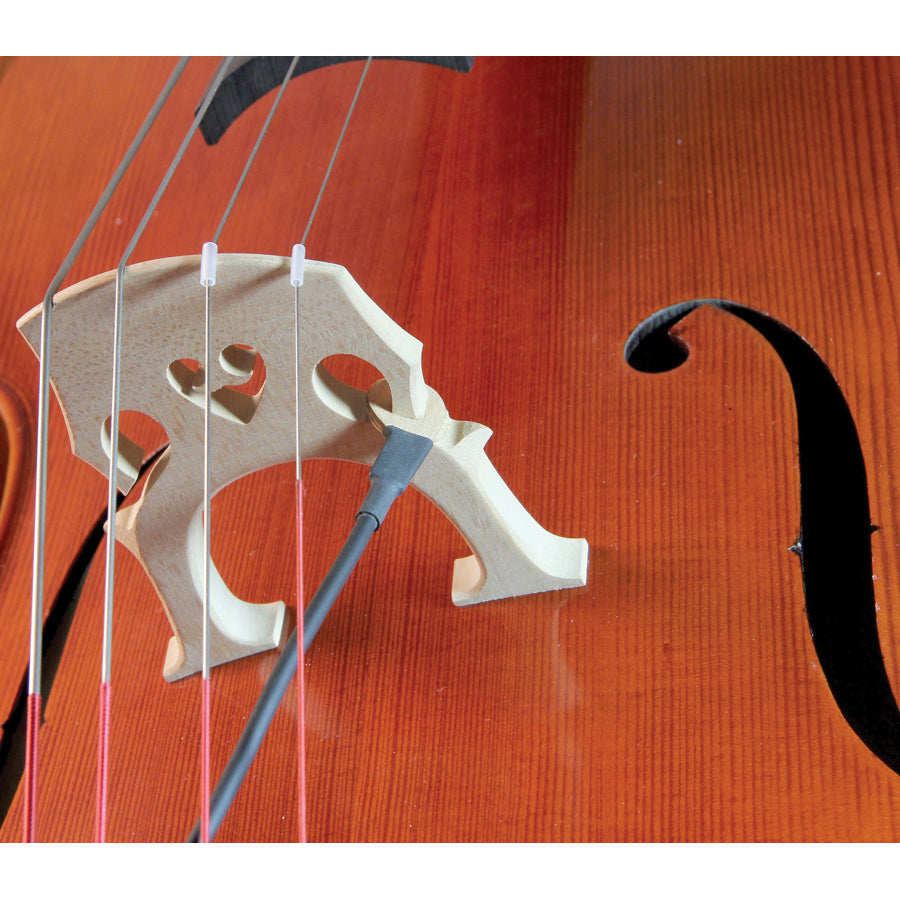

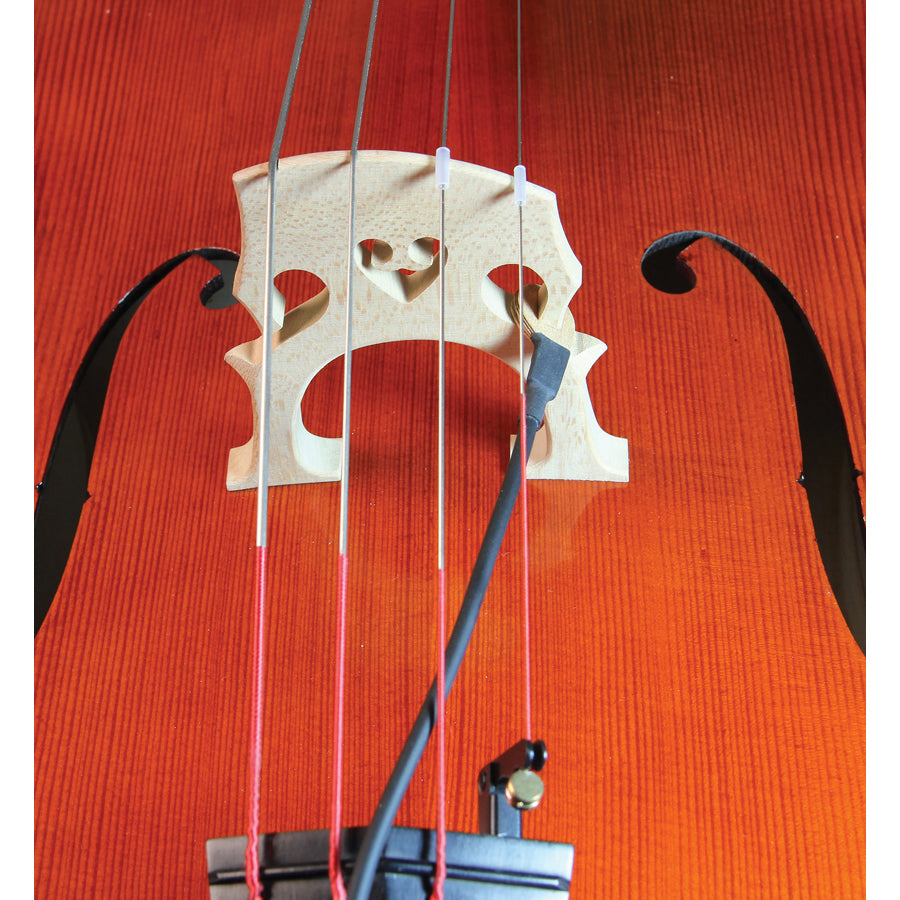

A wood-encased piezo sensor installs in the eye slot of the bridge, held in place via friction. Neatly-finished shim discs ensure the perfect fit. The 1/4" socket jack attaches securely to the tailpiece with a Velcro band.
Wooden sensor
The piezo sensor has a lightweight wooden casing to achieve maximum tonal sensitivity and transmission.
Natural sound
VC-1 has a passive design that reproduces the natural sound of the instrument with no need for a battery.
Complete installation set
The pickup comes with additional neatly-finished shim discs for fitting the sensor in narrow bridges.
DOWNLOAD INSTALLATION INSTRUCTIONS HERE
| specifications | |
| Diameter of the piezo element | 15.40mm / 0.88" |
| Thickness of the piezo element | 2.40mm +/- 0.08mm 0.095" +/- 0.003" |
| Lead cable from jemale jack to element | 22.5cm / 8.86" |
| Maximum Impedance | 800 ã_ |
