8011DB SYSTEM 520-556MHZ

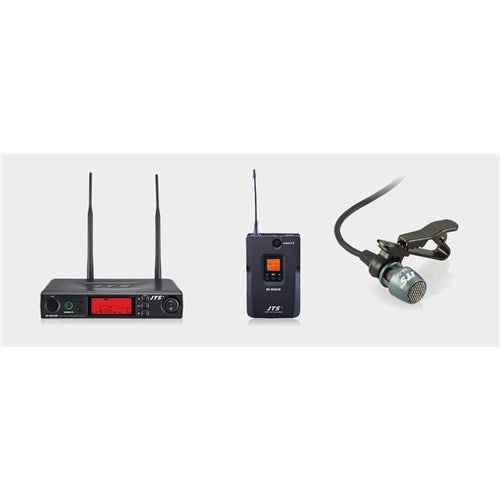

JP-8011DBKITBB1 8011DB system, 520-556MHz includes RU-8011DB receiver RU-850LTB belt-pack transmitter CM-501 lapel mic RU-8011DB This product is a full feature version of RU-8011D. It is built with detachable BNC antenna. Besides selectable group and channel its frequency can be fine adjusted by interval of 0.025 MHz for multi system application. SPECIFICATIONS Frequency Preparation PLL Synthesized Control Carrier Frequency Range 520-556MHz Frequency Setting REMOSET U Receiving Mode Antenna Diversity Bandwidth 36MHz S/N Ratio >105dB(A) T.H.D <0.6%@1KHz Sensitivity -95dBm,S/N>80dB Rejection Ratio >80 dB Frequency Response 50Hz~16KHz±2dB Antenna Type BNC Socket Antenna Booster Power DC12~15V/100mA Display LCD Display Contents Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume Controls Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton(XLR), Frequency Scan(ON/OFF) Audio Output Level Ref/ ±22.5KHz Dev@1KHz Tone ?6.3 Phone Jack/ -10dBV XLR Jack/ -4dBV(Line) ? -24dBV(MIC) Audio Output Impedance 600O Squelch Pilot Tone & Noise Mute Output Connector 1 independent balanced XLR and one Ø6.3mm unbalanced. Power Supply DC12~15V/300mA Dimension (mm) 212.3mm(W)* 38.3mm(H)* 144mm(D) Notes Acutal product specifications may vary depending on region RU-850LTB This innovative bodypack transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receiver’s front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes without audio input. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side. To cope with music instruments a pad of -20 dB is designed. Recharging circuit and connector are already built in case users want to upgrade the system. SPECIFICATIONS Frequency Preparation PLL Synthesized Control Carrier Frequency Range 520-556MHz Frequency Setting REMOSET U(Receive) RF Outpus Low / High Stability <±10KHz@Fc Frequency Deviation ±48KHz Spurious Emissions <-50dBc Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery Display LCD + LED Input Connector 4P Mini XR Controls Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock Battery UM3, AA x2 CM-501 Uni-direction for high-quality voice pick-up. Wide dynamic range and frequency response for excellent sound reinforcement. Small size for minimum visibility. Together with clip for easy attaching to a tie, lapel, dress etc. SPECIFICATIONS Connector 4P Mini XLR Frequency Response 100~15,000 Hz Polar Pattern Cardioid Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/µbar Impedance 2.2kO Max. SPL for 1% THD 130dB Dimension(mm) Ø10.1mm(W)* 26.4mm(H) Net Weight 21.5g
