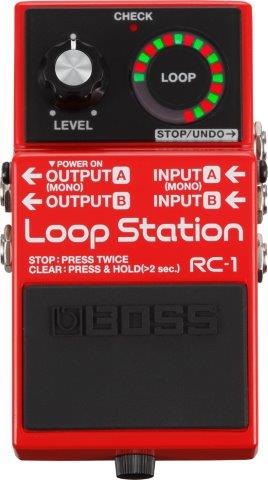

RC-1 LOOP STATION

SPECIFICATIONS Nominal Input Level -20 dBu Input Impedance 1 M ohm Nominal Output Level -20 dBu Output Impedance 1 k ohm Recommended Load Impedance 10 k ohms or greater Controls Pedal switch LEVEL knob Indicators CHECK indicator LOOP indicator Connectors INPUT A (MONO) jack: 1/4-inch phone type INPUT B jack: 1/4-inch phone type OUTPUT A (MONO) jack: 1/4-inch phone type OUTPUT B jack: 1/4-inch phone type STOP/UNDO jack: 1/4-inch TRS phone type DC IN jack Power Supply Alkaline battery (9 V, 6LR61) AC adaptor (sold separately) * Rechargeable Ni-MH batteries cannot be used. Current Draw 85 mA Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.) Alkaline: Approx. 4.5 hours Accessories Owner's manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)
